STAINLESS STEEL SHEETS /PLATES
Materials：201,202,409,410s,430,304/304L,316L,321,317L,310S,2205,2507 ETC
STANDARD： ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2
COLD ROLLED STAINLESS STEEL SHEETS
THICKNESS：0.29-6.0mm
WIDTH:500-1500MM
LENGTH :500-6000mm
SURFACE TREATMENT： 2B, BA, 8K, 6K, No4, Hair Line with PVC
HOT ROLLED STAINLESS STEEL SHEETS
THICKNESS：3.0-80.0mm
WIDTH：500-2500mm
LENGTH: 500-12000MM (Depends on customer needs)
SURFACE TREATMENT：NO.1
ORIGIN：POSCO ,TISCO .JISCO. BAOSTEEL

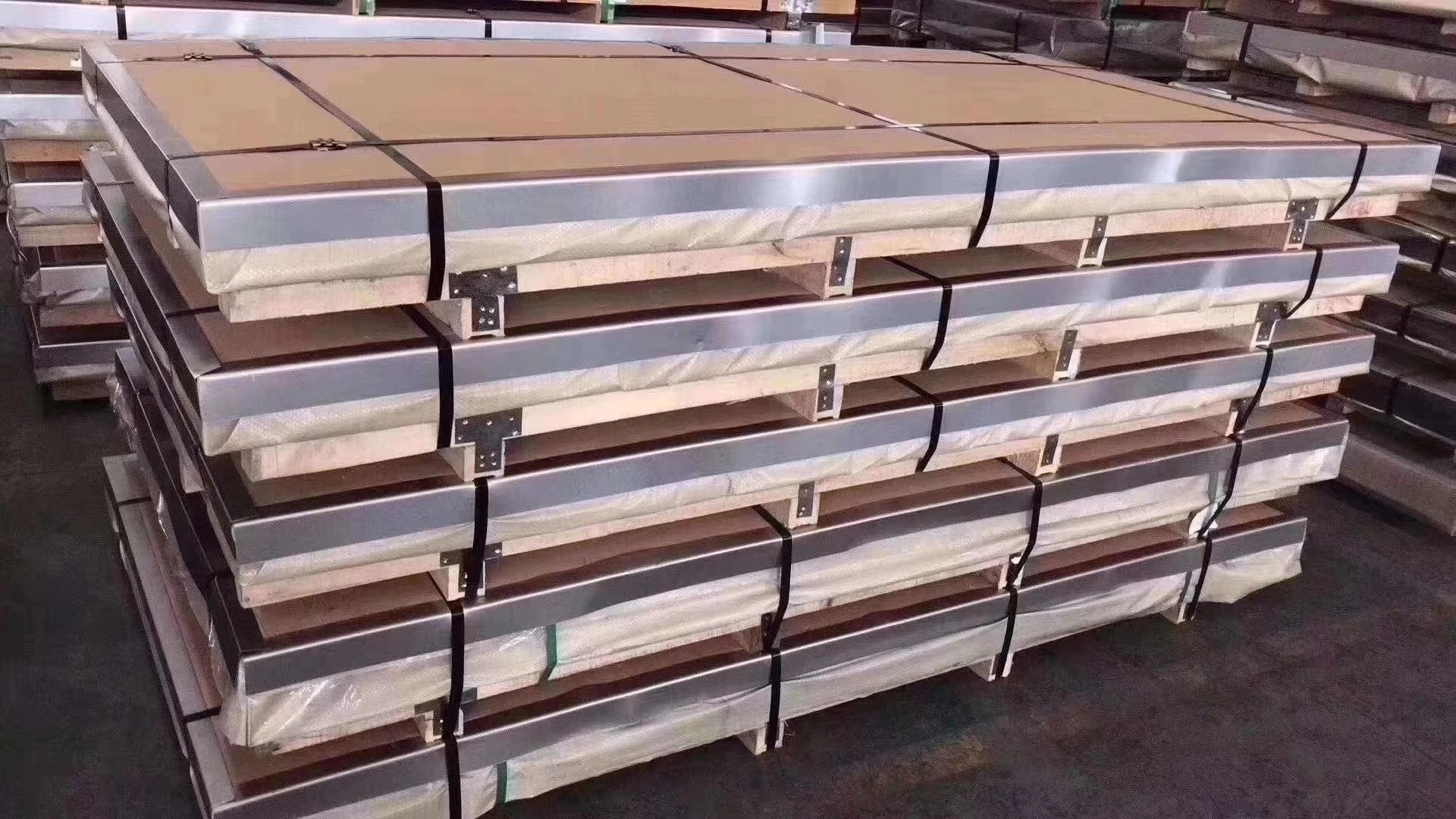

Packing Information of Cold Rolled Stainless Steel Coil:
We wrap the stainless steel products with antirust paper and steel rings to prevent damage.
Identification labels are tagged according to standard specification or customer's instructions.
Special packing is available as per customer's requirement.
Applications of Stainless Steel Sheets
1.Automotive:Automotive trim and molding/Difficult-to-form exhaust system components,
tubular manifolds, mufflers /Exhaust manifold and other exhaust-system components,
catalytic converter shells, clamps
2. Construction: Gutters and downspouts, roofing, siding
3. Kitchenware: Cooking utensils, dishwashers, ovens, range hoods, refrigerators, skewers
4. Chemical processing: Oil refinery equipment, oil burner and heater parts
5. Appliances: Hot water tanks, residential furnaces
6. Power generation: Heat Exchanger tubing
7. Farming: Dry fertilizer spreaders/Farm animal pens
CHEMICAL COMPOSITION ( IN PERCENTAGE ) |
Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | N (Max) | Cu/ Others |
201 | 0.15 | 5.50-7.50 | 0.060 | 0.030 | 1.00 | 16.00-18.00 | 3.50-5.50 | - | 0.25 |
|
202 | 0.15 | 7.50-10.00 | 0.060 | 0.030 | 1.00 | 17.00-19.00 | 4.00-6.00 | - | 0.25 |
|
304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00 - 20.00 | 8.00- 10.50 | - | 0.10 | - |
304L | 0.030 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00 - 20.00 | 8.00- 12.00 | - | 0.10 | - |
316L | 0.030 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00 - 18.00 | 10.00- 14.00 | 2.00 - 3.00 | 0.10 | - |
321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 - 19.00 | 9.00 - 12.00 | - | 0.10 | Ti5xC Min |
409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.00 | 10.50 - 11.75 | 0.50 | - | - | Ti= 6x (C+ N) |
410S | 0.08 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.60 | - | - | - |
430 | 0.12 | 1.00 | 0.040 | 0.030 | 1.00 | 16.00 - 18.00 | 0.75 | - | - |
|
